 Structural featrures:

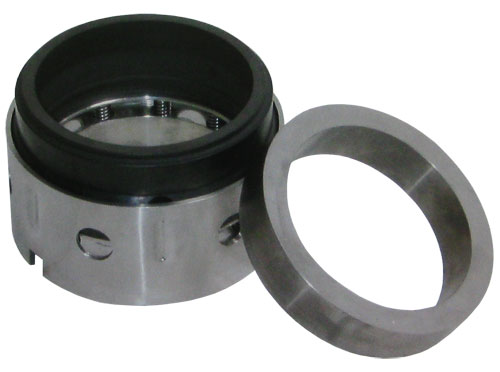

This is a stationary, balanced, multi-spring and single end face mechanical seal.
It’s applicable for working conditions of high-speed shaft seals and widely applied for shaft seals of boiler water feed pumps of 100,1000-300,000 thermal power generator units and large-scale high-speed centrifugal pumps in petroleum and chemical engineering.
Application scope:
Pressure: 0.2~2MPa
Shaft diameter: ф50~ф200mm
Temperature: normal temperature~170℃
Linear speed: ≤50m/s
Application: clear water, oil and other slightly corrosive liquids.
| Model |
D1 |
D2 |
D3 |
D4 |
D5 |
L1 |
L2 |
f |
| DSD8410 |
50 |
60 |
72 |
55 |
68 |
79 |
12 |
3 |
| DSD8411 |
60 |
75 |
82 |
65 |
78 |
79 |
12 |
3 |
| DSD8412 |
70 |
85 |
92 |
75 |
88 |
79 |
12 |
3 |
| DSD832 |
79.38 |
94.5 |
102 |
85 |
89.5 |
79 |
12 |
3 |
| DSD831 |
88.9 |
105 |
112 |
95 |
99 |
79 |
12 |
3 |
| DSD841 |
104.78 |
120.8 |
132 |
111 |
118 |
79 |
12 |
3 |
| DSD823 |
120.65 |
139.9 |
154 |
128 |
130 |
79 |
12 |
3 |
| DSD8230 |
135 |
165 |
172 |
148 |
155 |
79 |
12 |
3 |
| DSD871 |
152.4 |
171.7 |
184 |
159 |
165 |
87 |
9.5 |
3 |
|
